CFCM-30 EH / ES

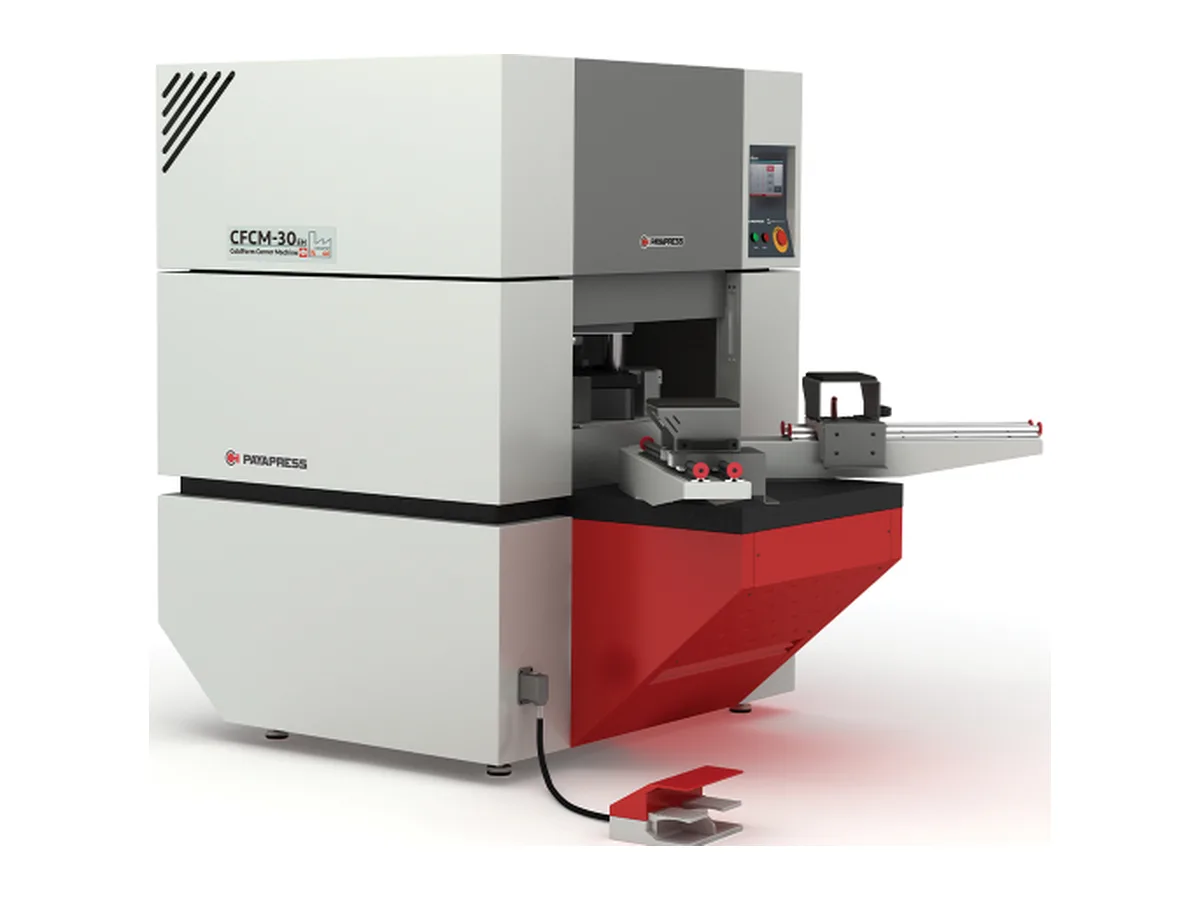

ColdForm Corner Machine
Forms seamless, weld-free corners in sheet metal from 0.5 to 2 mm, with corner radii from 6 to 30 mm.
- Function
- Weld-free cold forming of sheet-metal corners
- Total Power
- 4.5 kW
- Maximum Hydraulic Pressure
- 200 bar
Overview
In the usual method, sheet-metal corners are cut and bent, then welded, ground and polished. That takes several operations and the corners never come out exactly alike.

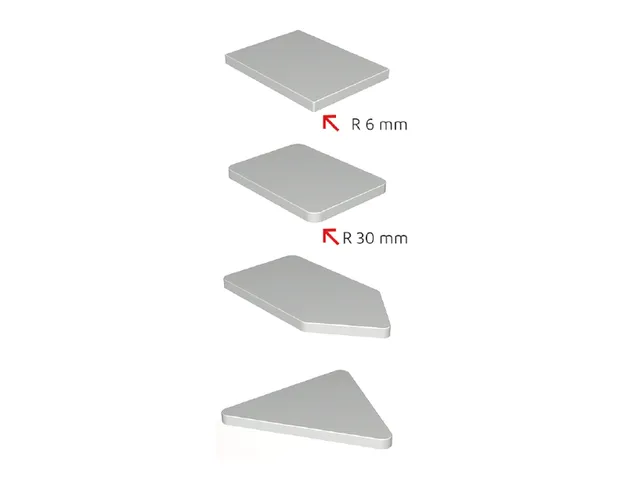

The CFCM-30 cold-forms the corner in one continuous pressing operation instead. The result is a closed, rounded corner with no weld seam, and every piece has the same shape.

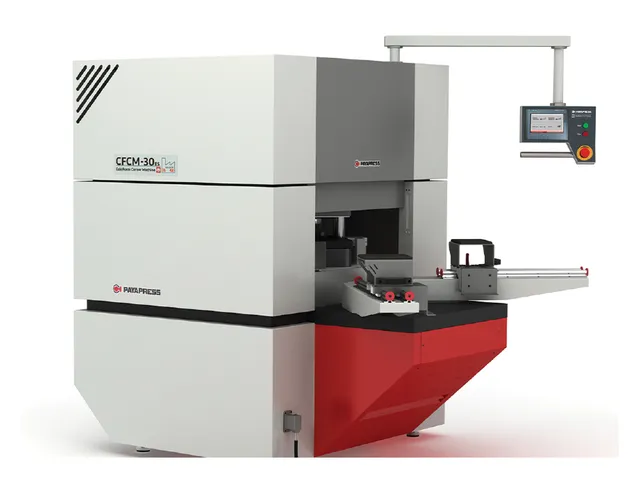

Two versions are available. On the CFCM-30 EH the dies are changed by hand when you switch radius or sheet thickness. On the CFCM-30 ES the die change is automatic.
Key features
- No welding, grinding or polishing of corners
- Corner radius 6 to 30 mm
- Sheet thickness 0.5 to 2 mm (ST12, ST37, stainless steel)
- Manual (EH) or automatic (ES) die change
- 7 inch HMI with Delta PLC
- 4.5 kW total power, 200 bar hydraulics
- Industry 4.0 ready
Advantages
- Several times faster than welding and finishing corners
- Identical corners on every piece
- Lower cost per corner
Technical Specifications
| Function | Weld-free cold forming of sheet-metal corners |
|---|---|
| Die Change for Radius / Thickness | Manual (CFCM-30 EH); Automatic (CFCM-30 ES) |
| Sheet Thickness Range | 0.5 to 2 mm |
| ST12 (Oiled) Sheet | 0.8 to 2 mm |
| ST37 (Black) Sheet | 1.5 to 2 mm |
| Stainless Steel Sheet | 0.8 to 2 mm |
| Forming Radius | 6 to 30 mm |
| Minimum Piece Size | 210 x 210 mm |
| Total Power | 4.5 kW |
| Motor | 1 x 4 kW |
| Maximum Hydraulic Pressure | 200 bar |
| Hydraulic Tank | 50 litres |
| HMI | 7 inch |
| PLC | Delta |
| Overall Dimensions (W x L x H) | 1420 x 1200 x 1850 mm |
| Machine Weight | 1200 kg |
Components
| Hydraulic Valve | Tork Hydraulics (EH); Duplomatic (ES) |
|---|---|
| Hydraulic Pump | Arafan |
| Motor | Electrogen |
| Sensors | Autonics |
| Sealing | Kastas |
| AC Contactor | Hyundai (EH); Schneider (ES) |
Applications
- Electrical panel enclosures and doors
- Control and distribution cabinets
- Sheet-metal housings, covers and trays
