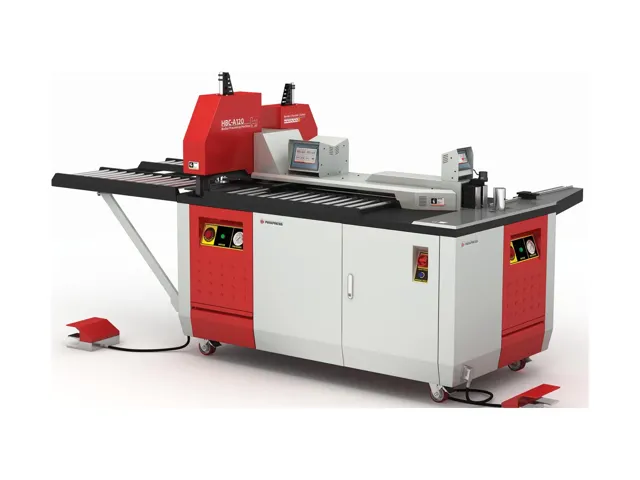

HBC-A120 EH / ES
A Series Busbar Machine 120 x 12 mm
Cuts, punches and bends busbars up to 120 x 12 mm simultaneously, with three separate power packs.
Cut, punch and bend busbars on one machine
Hydraulic, economic and CNC busbar processing machines for electrical panel builders and switchgear manufacturers.
- Busbars up to 200 x 15 mm (CNC)
- Copper and aluminium
- Industry 4.0 ready
Machine range
Pick a machine type to see every model, capacity and specification.
Busbar Processing Machines
3-in-1 machines that cut, punch and bend busbars up to 160 x 15 mm.
4 models

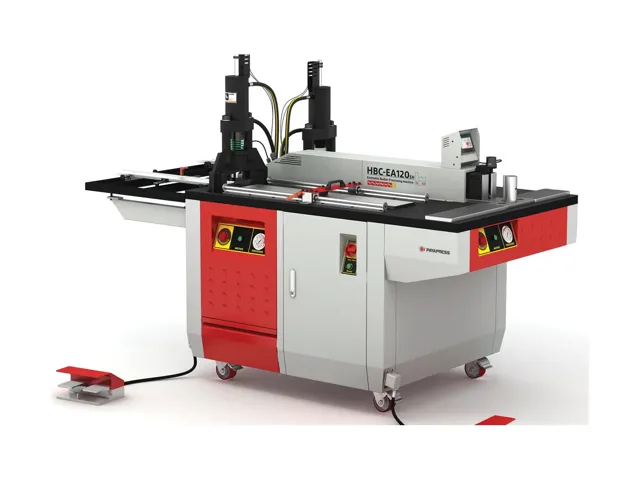

Economic & Workshop Machines
Cost-effective 120 x 12 mm machines, plus a compact workshop machine with optional cable crimping.
3 models

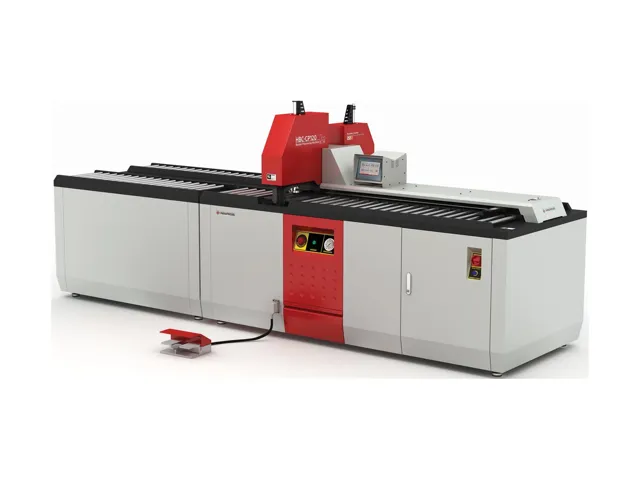

Busbar Cutting & Punching Machines
Dedicated cutter-puncher lines with long roller desks and two power packs.
2 models

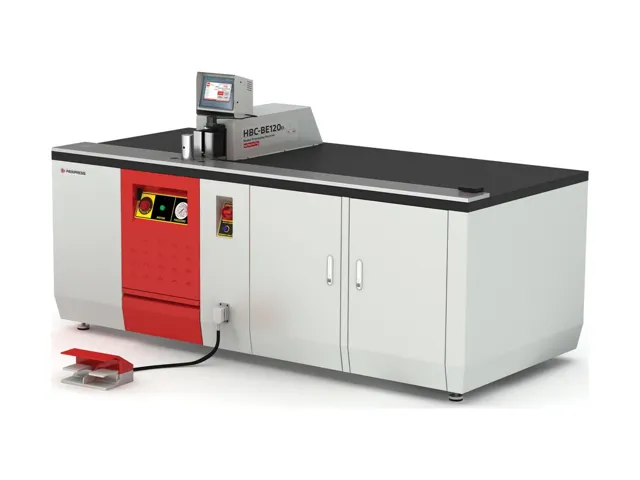

Busbar Bending Machines
Stand-alone benders with programmable length stopper and optional step, edge and twist molds.
2 models

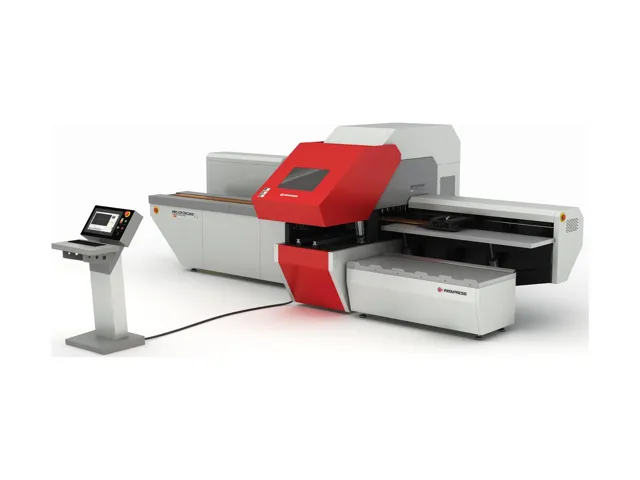

CNC Busbar Machines
Fully automatic CNC cutting and punching of busbars up to 200 x 15 mm.
1 model
Featured machines
Our most requested models.
HBC-A160 EH / ES
A Series Busbar Machine 160 x 15 mm
Simultaneous cutting, punching and bending of busbars up to 160 x 15 mm.
HBC-CP160 EH / ES
Busbar Cutting & Punching Machine 160 x 15 mm
Simultaneous cutting and punching of busbars up to 160 x 15 mm.
HBC-CP.CNC200
CNC Busbar Cutting & Punching Machine 200 x 15 mm
Fully automatic CNC punching and cutting of busbars up to 200 x 15 mm, with seven tool stations.
HBC-EA120 EH
Economic Busbar Machine 120 x 12 mm, Simultaneous
Economic 3-in-1 machine that cuts, punches and bends busbars up to 120 x 12 mm simultaneously.

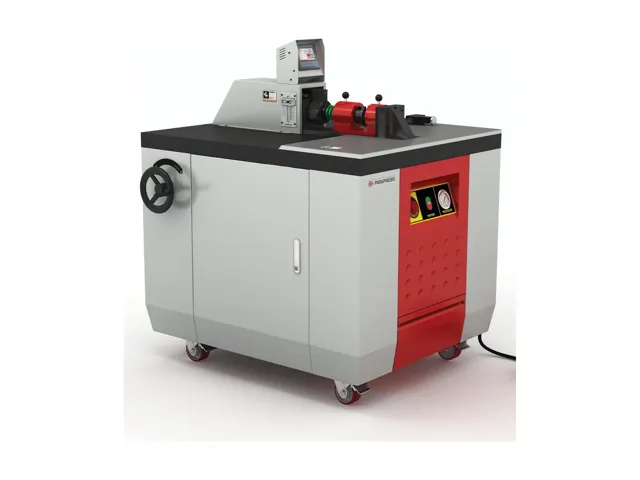

HBC-PC120 EH
Workshop Busbar & Cable Machine 120 x 12 mm
Compact workshop machine that cuts, punches and bends busbars one by one, with optional cable crimping and cutting.

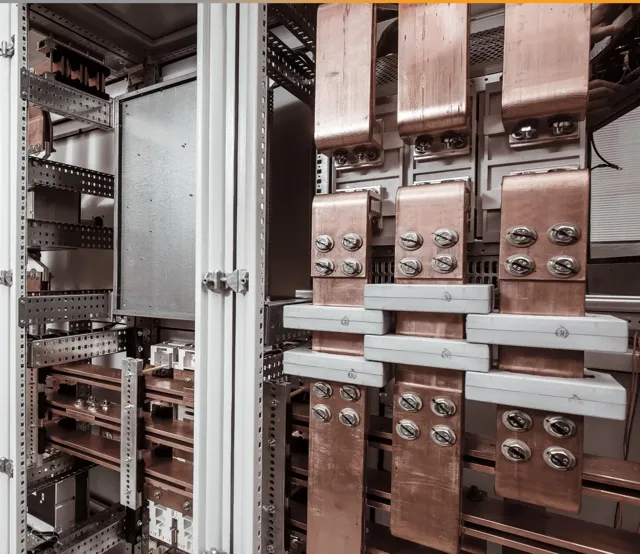

Machines for the busbar shop floor
Every panel, switchboard and busduct needs busbars that are cut square, punched in the right place and bent to the exact angle. Our range covers that work from a single workshop machine up to a fully automatic CNC line.
Choose a machine that runs all three stations at once for high-volume production, one that switches between stations to save cost and space, or a dedicated cutter-puncher, bender or CNC line.
About usWhy panel builders choose these machines
Three stations, one footprint
Cutting, punching and bending on a single machine, simultaneously or one by one.
Accurate bends
Electronic bender controller with high-accuracy encoder and spring-back compensation.

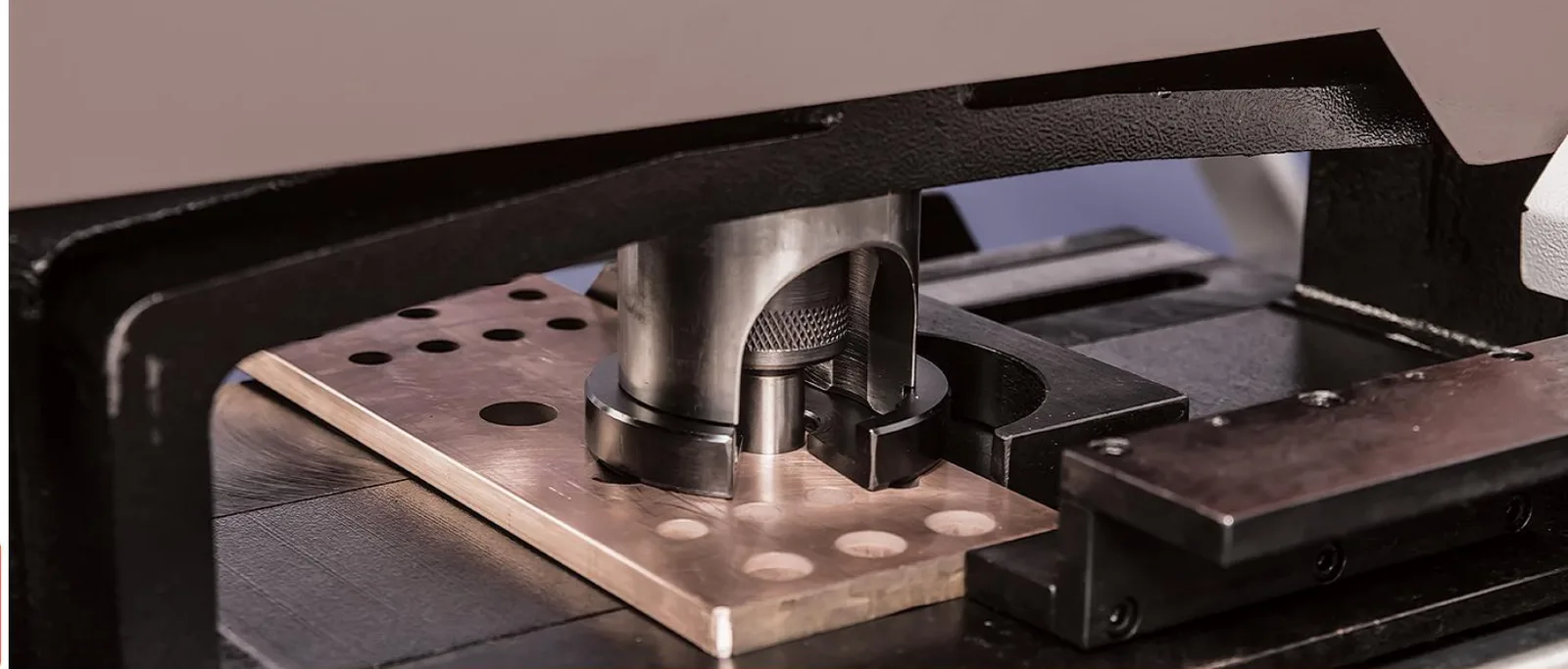

Faster hole positioning

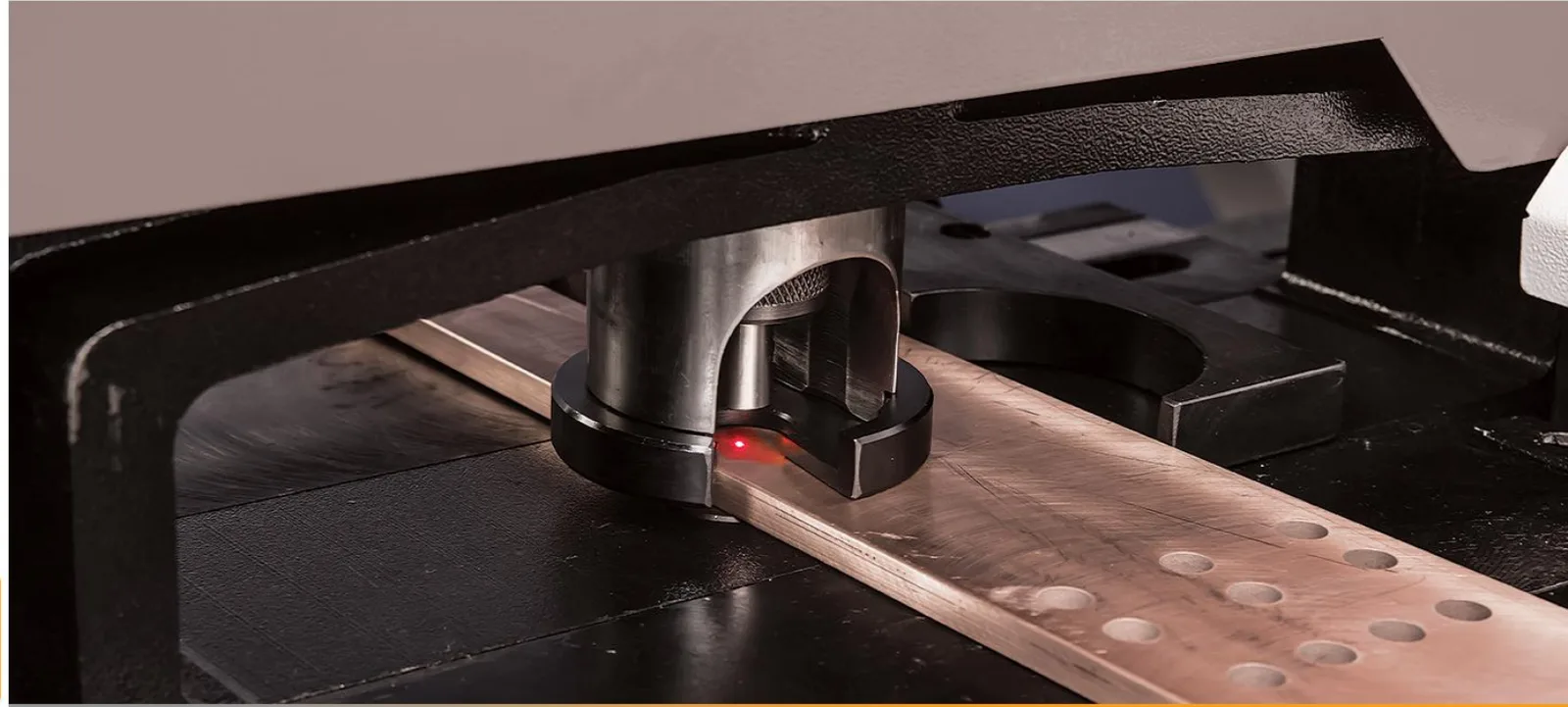

Laser pointer finds the hole centre; programmable stoppers store 20 positions.
Copper and aluminium
Every model processes both Al and Cu busbars.
Industry 4.0 ready
Machines are prepared for connected, data-driven production.
Local sales and support
Quotations, demos and after-sales help from our Lahore office.
Applications
Where these machines do their work.
Electrical Panel ManufacturingCut, punch and bend copper and aluminium busbars for LV panels, switchboards and distribution boards.

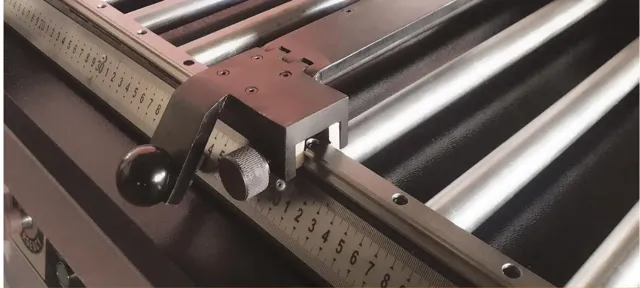

Switchgear and MCC PanelsProcess the heavier busbars used in main switchgear, MCC and PCC panels with 160 x 15 mm and CNC machines.

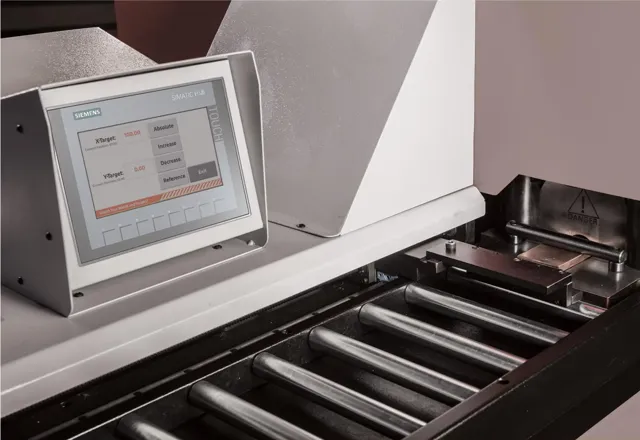

Busduct and Busway FabricationProduce long, accurately punched busbars for busduct runs with roller-desk cutting and punching lines.

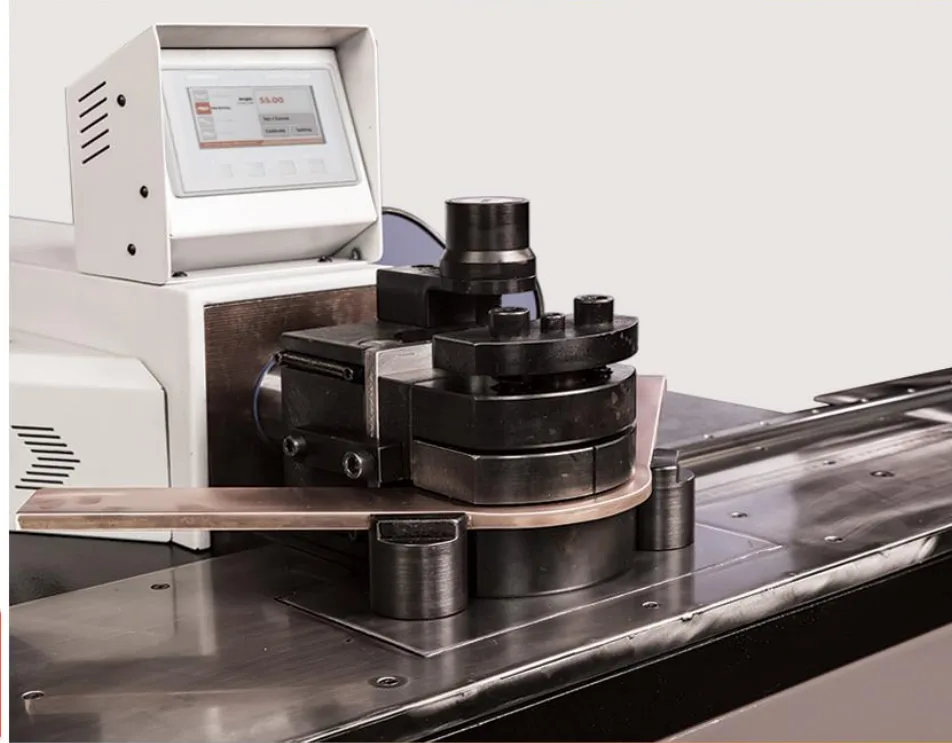

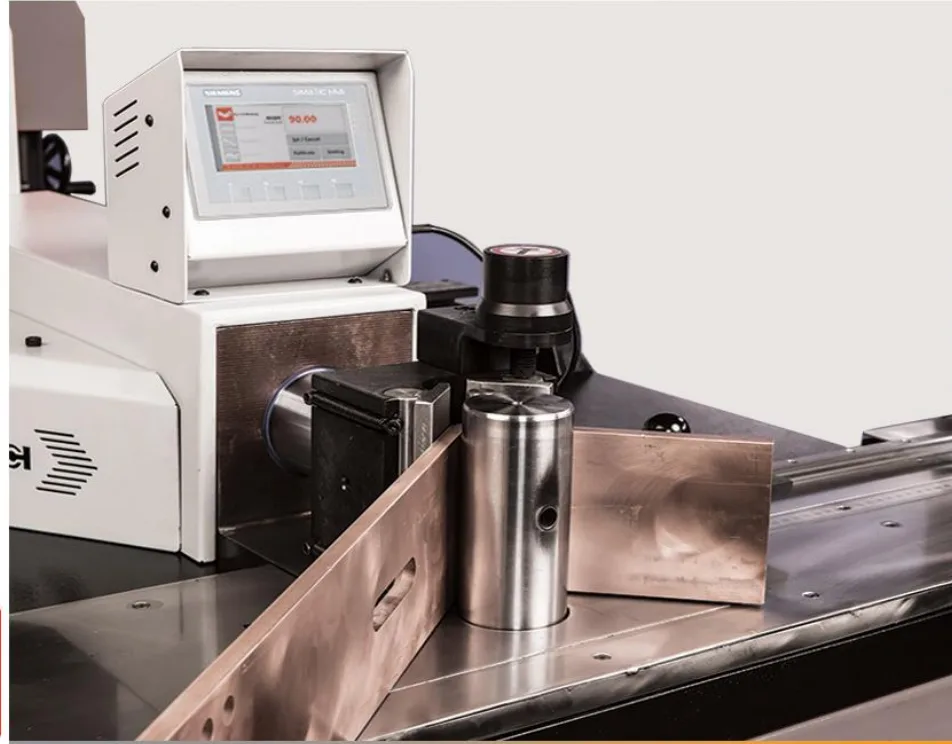

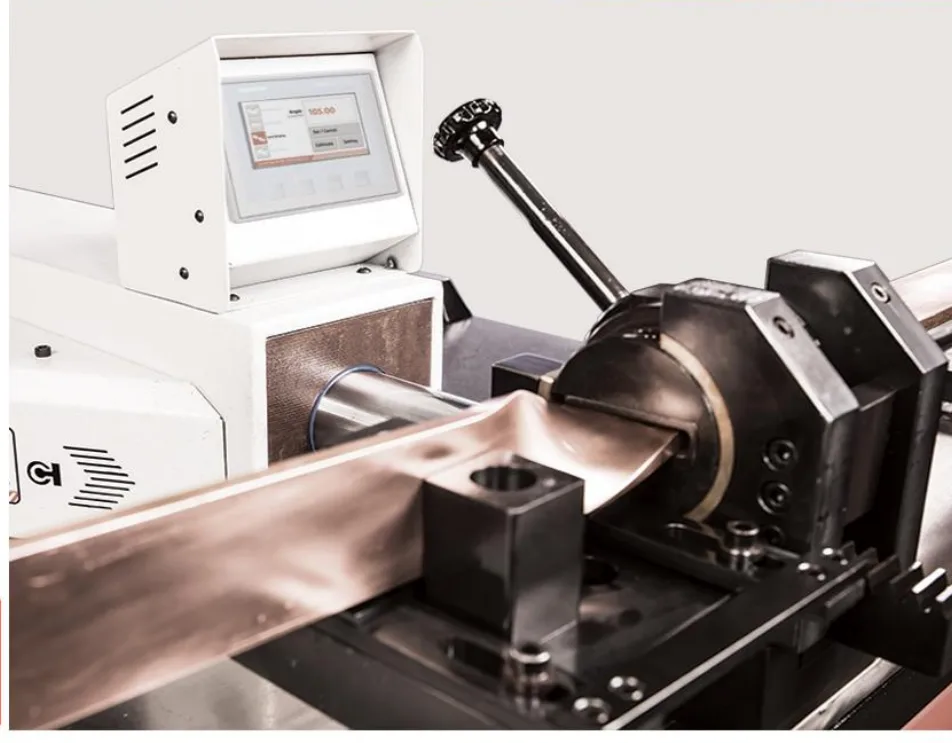

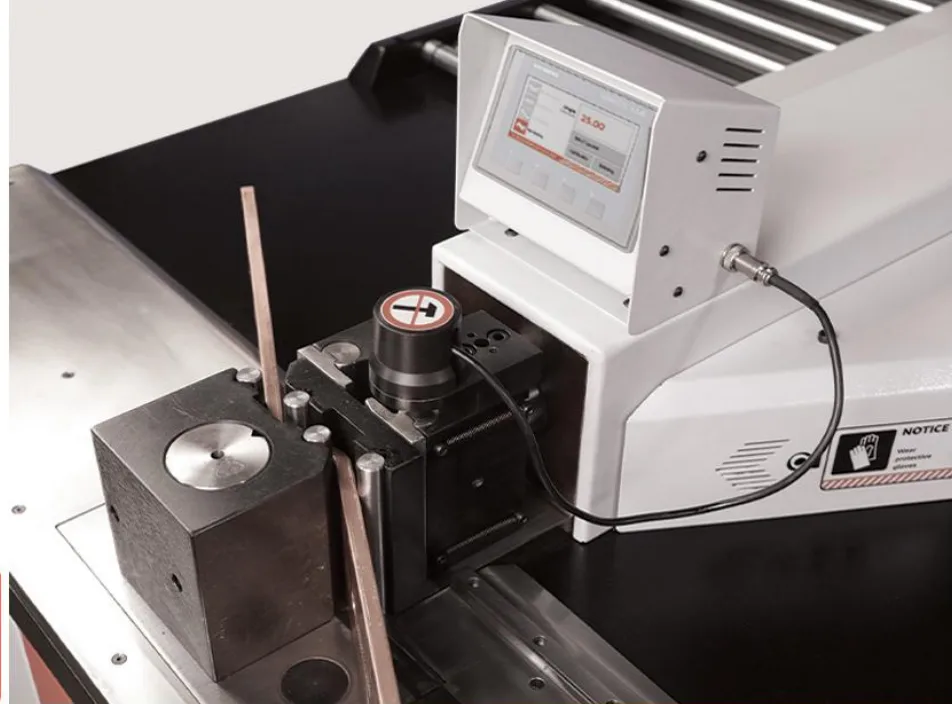

Busbar Bending and FormingMake offset, edge and twist bends with step, edge-bending and twist molds on the bender station.
Industries we serve: Panel Builders, Switchgear Manufacturers, Power and Utilities, Electrical Contractors
18Machine models
200 x 15Max CNC busbar size (mm)
M6 to M20Circle punching dies
200Bar operating pressure
Certifications and partners
- CE markedMachines carry the CE mark
- Industry 4.0Ready for connected production
- Al / CuAluminium and copper busbars
Projects and gallery
Machine details and finished busbar work.
From the blog
Guides on choosing and running busbar machines.
Getting clean bends in copper and aluminium busbars
Spring-back compensation, the right mold and a protected surface make the difference between a good bend and scrap.
EH or ES: which length stopper do you need?
The last two letters of the model name tell you how the puncher and cutter measure length. Here is the difference.
How to choose a busbar processing machine
Busbar size, daily volume and the number of operators decide which machine fits your shop. Here is how to match them.
Need the right machine for your application?
Tell us your busbar sizes and daily volume. We will recommend a model and send a quotation.
Talk to our sales team
Send your busbar sizes and the work you do. We will suggest a model and send a quotation.
