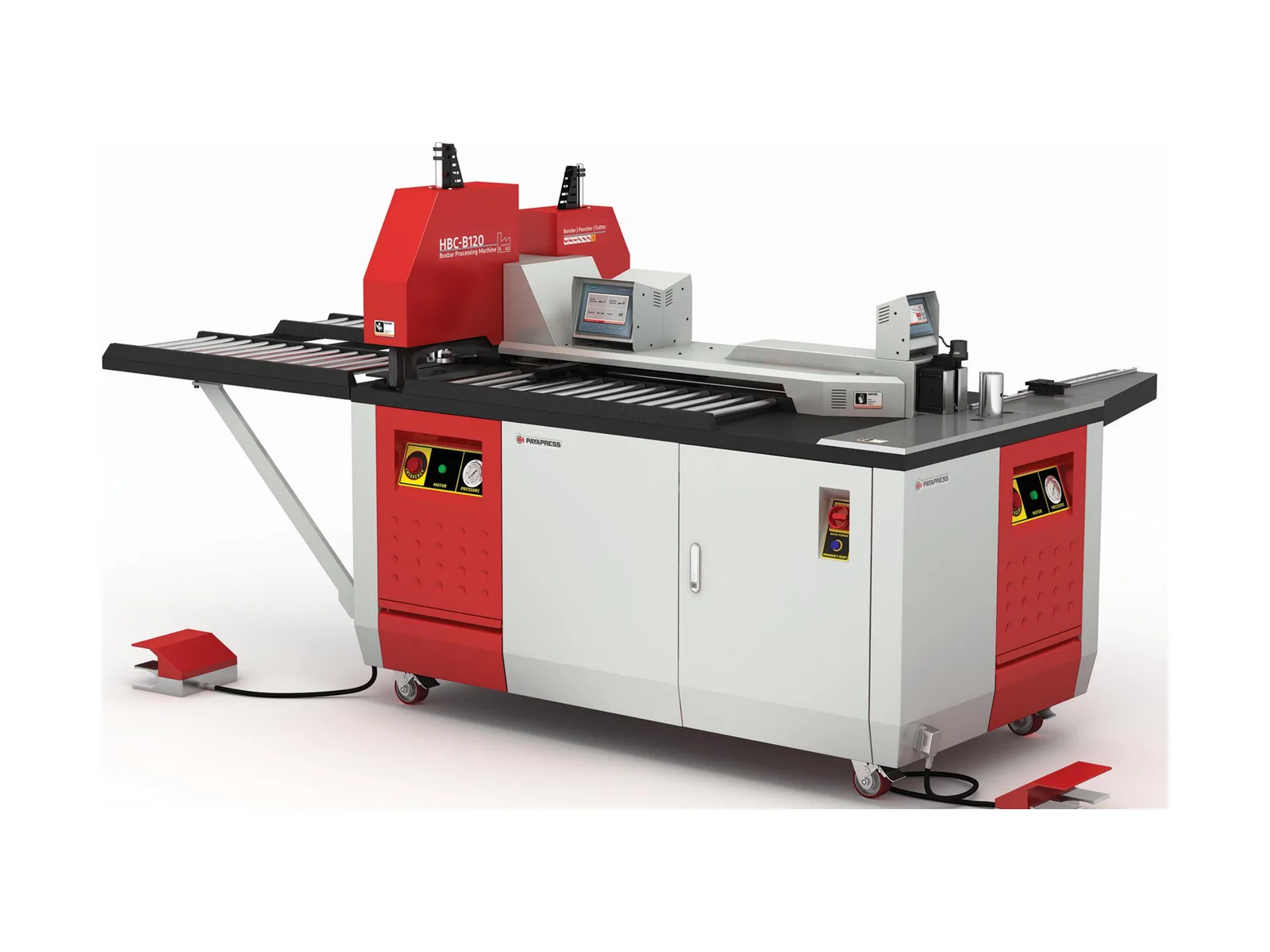

HBC-B120 EH / ES
B Series Busbar Machine 120 x 12 mm
Cuts, punches and bends busbars up to 120 x 12 mm one by one, from a single power pack.
- Function
- Cutting, Punching and Bending Busbars One by One
- Bender Capacity
- Up to 120 x 12 mm
- Cutting Capacity
- Up to 120 x 12 mm
- Punching Capacity
- Circle Dies: M6 up to M18; Oval and Rectangle Dies (Optional)
Overview
The HBC-B120 has the same three stations as the A Series but shares one power pack, so stations are used one at a time.
It is the cost-effective choice when your busbar volume does not need all three stations running together.
Key features
- Electronic bender controller with spring-back compensation
- Digital angle indicator for accurate bending
- Rotatable plates prevent damage to the busbar surface
- Optional step, edge-bending, twist and end-bending molds
- Laser pointer finds the centre of holes
- Quick-change circle dies; oval and rectangle dies optional
- Movable stripper plate
- Double-acting hydraulics stop dies sticking in the busbar after punching
- Rollers on both sides of the puncher for easy busbar movement
- Precise cutting with a clean finish
- Centre-oriented guide
- Rollers on both sides of the cutter
- Handy length stopper (EH) with fine adjustment
- Programmable length stopper (ES): 20 positions, absolute or incremental
- Processes copper and aluminium busbars
- Industry 4.0 ready
Advantages
- Lower investment than the A Series
- Same cutting, punching and bending capacity
- One power pack to maintain
Technical Specifications
| Function | Cutting, Punching and Bending Busbars One by One |
|---|---|
| Bender Capacity | Up to 120 x 12 mm |
| Cutting Capacity | Up to 120 x 12 mm |
| Punching Capacity | Circle Dies: M6 up to M18; Oval and Rectangle Dies (Optional) |
| Bender Controller | Electronic Controller, High Accuracy Encoder |
| Bender Molds | Step Mold (Optional), Edge Bending Mold (Optional), Twist Mold (Optional), End-Bending Mold (Optional) |
| Puncher Center Finder | Laser Pointer |
| Length Measuring in Puncher and Cutter | Handy Length Stopper (EH); Programmable Length Stopper (ES) |
| Hydraulic System | One Power Pack, Double Acting System |
| Operating Pressure | 200 Bar |
| Power Rating | 1 x 1.5 Kw |
| Voltage | 380 Volt - 3/50 Hz |
| Oil | Hydraulic Oil H68 - 70 Liters |
| Main Desk Dimension | 200 x 110 x 100 (H) cm |
| Roller Desk Dimension | 110 x 110 cm |
Applications
- Electrical panel and switchboard manufacturing
- Switchgear and MCC panels
- Busduct and busway fabrication
- Power distribution and transformer connections
