HBC-EB120 EH
Economic Busbar Machine 120 x 12 mm, One by One
Economic 3-in-1 machine for busbars up to 120 x 12 mm, used one station at a time.

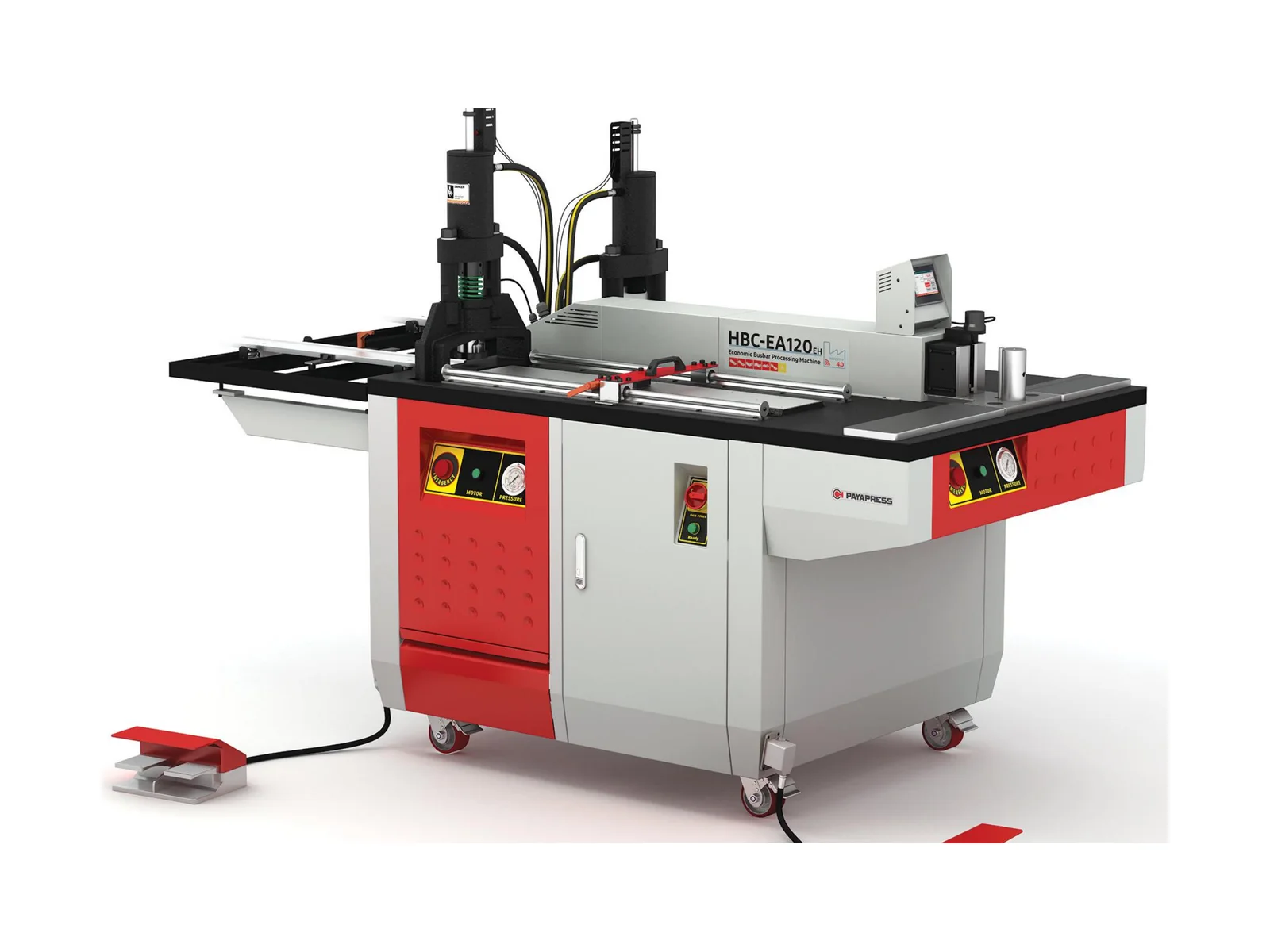

HBC-EA120 EH
Economic Busbar Machine 120 x 12 mm, Simultaneous
Economic 3-in-1 machine that cuts, punches and bends busbars up to 120 x 12 mm simultaneously.
- Function
- Cutting, Punching and Bending Busbars Simultaneously
- Bender Capacity
- Up to 120 x 12 mm
- Cutting Capacity
- Up to 120 x 12 mm
- Punching Capacity
- Circle Dies: M6 up to M18; Oval and Rectangle Dies (Optional)
Overview
The HBC-EA120 EH is the economic version of the A Series. Three separate power packs let all three stations run at once, with a handy length stopper on the puncher and cutter.
Key features
- Electronic bender controller with spring-back compensation
- Digital angle indicator for accurate bending
- Rotatable plates prevent damage to the busbar surface
- Optional step, edge-bending, twist and end-bending molds
- Laser pointer finds the centre of holes
- Quick-change circle dies; oval and rectangle dies optional
- Movable stripper plate
- Double-acting hydraulics stop dies sticking in the busbar after punching
- Rollers on both sides of the puncher for easy busbar movement
- Precise cutting with a clean finish
- Centre-oriented guide
- Rollers on both sides of the cutter
- Handy length stopper with fine adjustment
- Processes copper and aluminium busbars
- Industry 4.0 ready
Advantages
- Simultaneous operation at an economic price
- Compact 238 x 110 cm desk
Technical Specifications
| Function | Cutting, Punching and Bending Busbars Simultaneously |
|---|---|
| Bender Capacity | Up to 120 x 12 mm |
| Cutting Capacity | Up to 120 x 12 mm |
| Punching Capacity | Circle Dies: M6 up to M18; Oval and Rectangle Dies (Optional) |
| Bender Controller | Electronic Controller, High Accuracy Encoder |
| Bender Molds | Step Mold (Optional), Edge Bending Mold (Optional), Twist Mold (Optional), End-Bending Mold (Optional) |
| Puncher Center Finder | Laser Pointer |
| Length Measuring in Puncher and Cutter | Handy Length Stopper (EH) |
| Hydraulic System | Three Separate Power Packs, Double Acting System |
| Operating Pressure | 200 Bar |
| Power Rating | 3 x 1.5 Kw |
| Voltage | 380 Volt - 3/50 Hz |
| Oil | Hydraulic Oil H68 - 70 Liters |
| Main Desk Dimension | 238 x 110 x 100 (H) cm |
Applications
- Electrical panel and switchboard manufacturing
- Switchgear and MCC panels
- Busduct and busway fabrication
- Power distribution and transformer connections
